When a GE top-load washing machine (including Hydrowave, GTW, and Profile series) fills with water but refuses to agitate or spin, homeowners frequently believe the motor or main transmission is destroyed. In reality, modern GE washers isolate the high-power drive electronics inside an intelligent Motor Inverter Module mounted directly onto the electric drive motor beneath the tub. If an unbalanced load, lid cycle anomaly, or voltage surge occurs, the inverter enters a protective software lockout.
Step 1: The Official GE “6-Lid Raise” Motor Reset Sequence
This factory software reset procedure is documented in official GE service technical bulletins and clears motor lockout without tools:
Power Down the Washer
Unplug the washing machine power cord from the 120V wall outlet (or trip the dedicated circuit breaker in your electrical service panel).
Wait 60 Seconds for Inverter Discharge
Leave the washer unplugged for a minimum of 60 full seconds. This allows the high-voltage electrolytic capacitors inside the motor inverter board to bleed down to 0 volts.
Execute the 6-Lid Cycle Within 12 Seconds
Plug the power cord back into the electrical outlet. Within 12 seconds of restoring power, you must completely open and close the washing machine lid 6 times in steady succession. Ensure each closure triggers the physical lid latch switch firmly.
Verify Motor Reset
Select any cycle (e.g. Drain & Spin or Casuals) and press START. If the motor engages and spins, the software lockout has been cleared successfully.
Step 2: Decoding the Green Motor Inverter Diagnostic LED Flashes
If the 6-lid reset does not restore operation, look underneath the washer. GE drive motors have a small optical viewing port on top of the aluminum motor inverter cover through which a green diagnostic LED pulses.
| Green LED Flash Pattern | Official Diagnostic Status | Required Action / Diagnostic Meaning |
|---|---|---|
| 1 Flash per Second (Steady 1s ON / 1s OFF) | Normal Standby | Inverter is healthy and waiting for run command from console. Problem is lid lock or console board. |
| Fast Blinking (Continuous Rapid Pulse) | Motor Running Normally | Motor is receiving drive commands and actively rotating. |
| 4 Flashes | Mode Shifter / Clutch Fault | Mode shifter coil failed or clutch spring did not engage agitate/spin transition. Test shifter coil (98 Ω). |
| 5 Flashes | Motor Thermal Overload | Motor internal windings exceeded 135°C thermal limit. Allow 45 minutes to cool; check tub bearing binding. |
| 10 Flashes | Lid Switch Fault | Motor attempted 4 consecutive starts without seeing the lid switch open between cycles. Replace lid lock #WH01X27954. |
| Completely Dark (No Light) | No 120V Power or Blown Inverter Fuse | Check 120V AC supply at motor harness pins 1 & 2. If voltage present, inverter board has failed. |

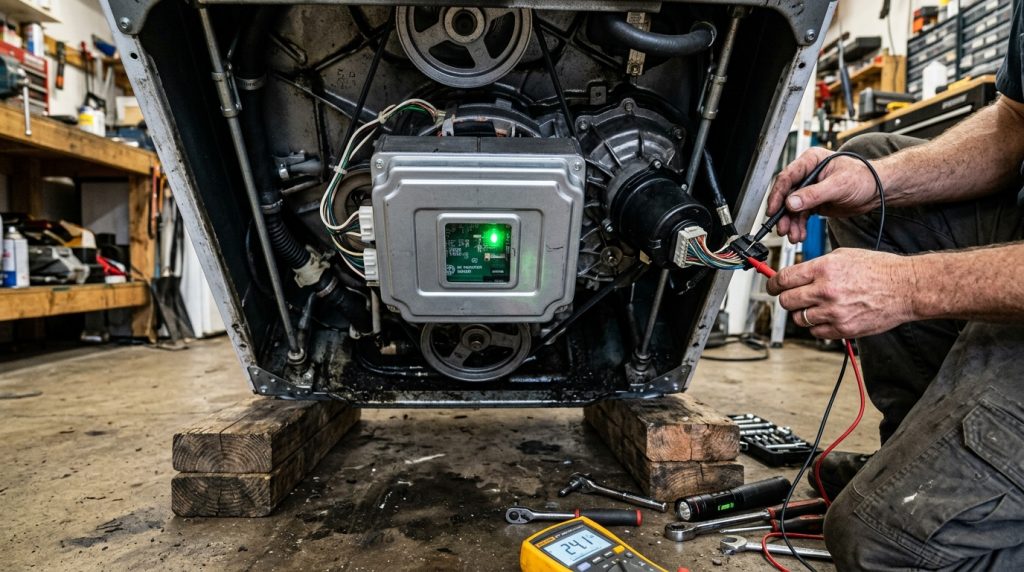

Step 3: Multimeter Test on GE Mode Shifter Actuator Coil (98 Ω)
When the inverter flashes 4 times, the mode shifter electric solenoid coil (mounted alongside the transmission shaft) has failed to switch the mechanical splines between agitation and spin mode.
- Unplug the washer and tilt it rearward on solid wooden blocks.
- Locate the cylindrical black mode shifter assembly attached to the transmission casting.
- Disconnect the 2-pin electrical connector from the mode shifter coil.
- Set your multimeter to Resistance (Ω) and measure across the two coil terminal pins:
- Normal OEM Spec: 98 Ω (± 5% / 93 Ω to 103 Ω) at room temperature.
- Fault: If the meter reads Infinite (O.L.) or under 10 Ω, replace the mode shifter assembly.
OEM Replacement Part Information
GE Heavy Duty Mode Shifter Assembly
OEM Part Number: WH03X30517 (Replaces WH20X10058, WH20X10018, AP6981881, PS12745749)
Compatibility: Fits GE Hydrowave and GTW series top-load washers (GTW220ACK, GTW330ASK, GTW460ASJ, GTW680BSJ).
Installation Time: 30 minutes with a 1/4″ and 3/8″ nut driver.
Connected Diagnostic Procedures & Next Steps
GE motor inverter lockouts are closely tied to lid latch interlocks and console command signals. Cross-reference these connected guides:
Frequently Asked Questions
Why did the 6-lid reset fail the first time I tried it?
Timing is strict: all 6 lid cycles must be completed within 12 seconds of plugging the unit in. If you hesitate past the 12-second window, the inverter timer times out. Repeat the process with steady, full strokes.
Can a faulty lid lock prevent the 6-lid reset from registering?
Yes. The inverter detects the lid opening via the lid switch electrical contacts. If the lid switch microswitch contacts are worn or burned out, the inverter will never receive the 6 closure pulses, remaining in error state (10 flashes).
